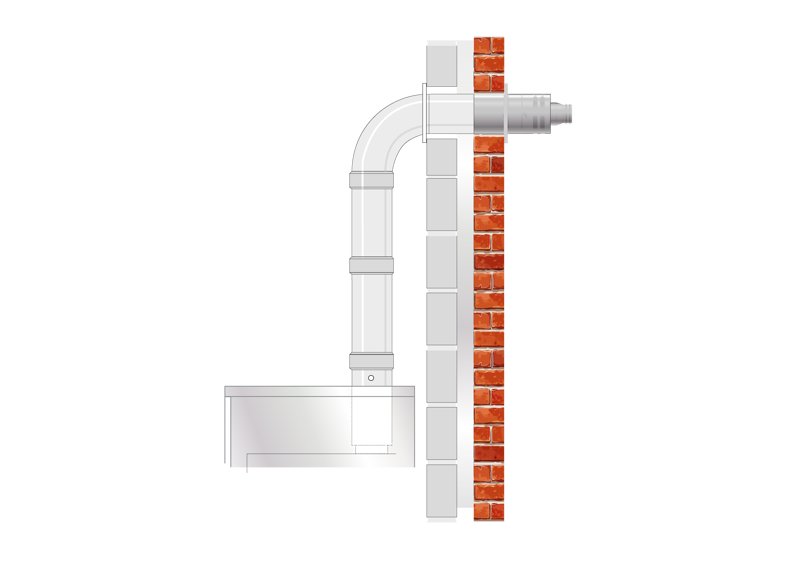

EZ Fit Flue Internal High Level Balanced Flue (White System)
High level balanced flue kits features the same EZ Fit boiler connections as the low level flue. The unique clamping system on the high level flue ensures easy assembly thereby reducing installation costs. With its flexible design the kits may be extended horizontally and vertically. It is now possible to create offsets in standard high level flue systems by using our 45° elbows and extension kits - increasing the versatility of this new range.
Features & benefits
- Flue may be extended horizontally and vertically
- Max total flue length = 10 mtrs (deduct 1 metre for each additional 45° bend added)
- Extensions available
- 150mm flue pipe diameter for boilers up to 26kW
- 180mm flue pipe diameter for boilers from 26kW to 70kW
- Supplied as a complete kit
- Possible to offset flue
- Terminal guard (not supplied) required when the flue terminates less than 2 mtrs
