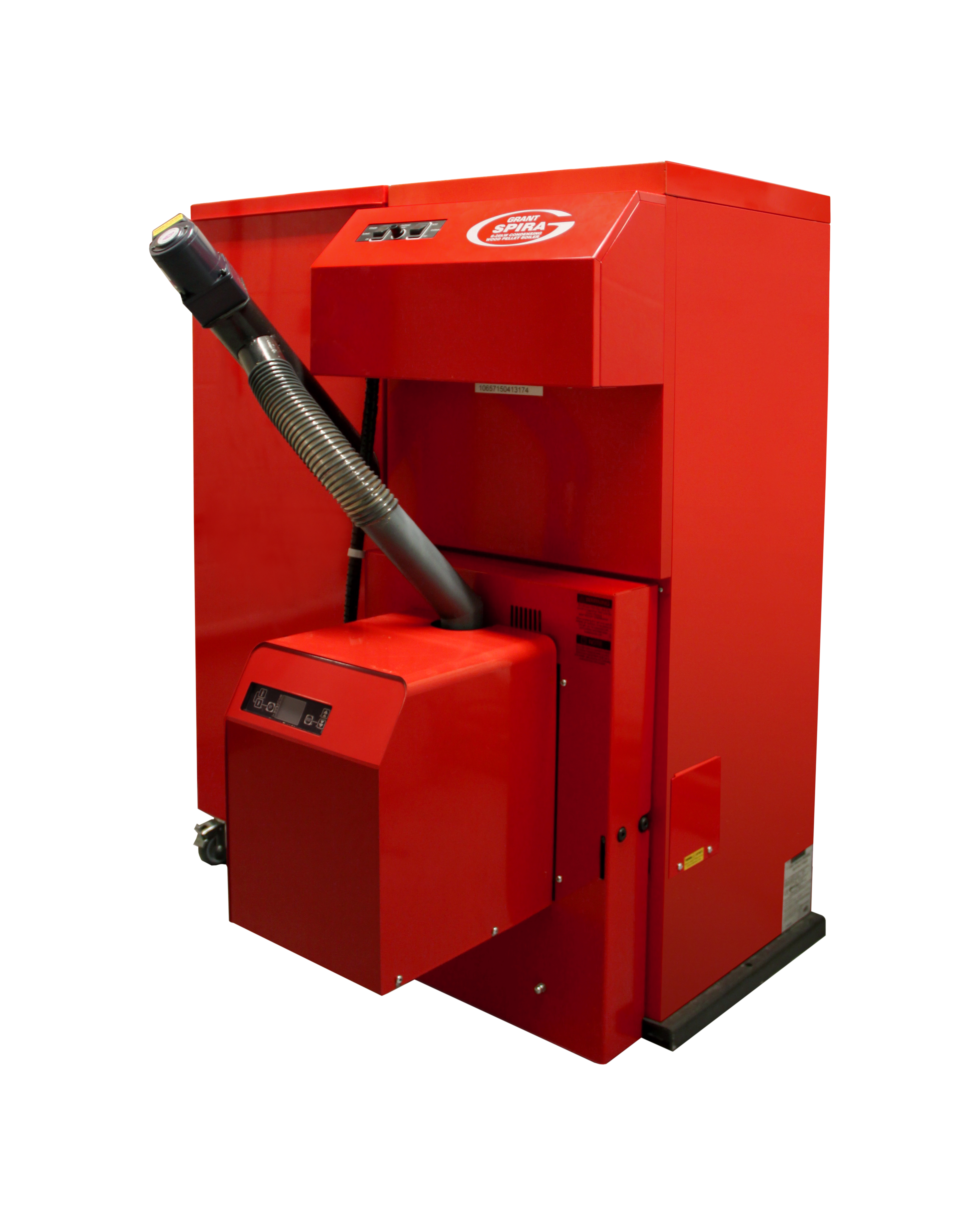

Grant Spira
The Grant Spira is a condensing woodpellet boiler that is easy to install with low maintenance and straightforward to operate. SEAI awarded the Spira "The best renewable energy product" in 2011 on its launch due to its unique twin baffle system. The Spira will give some of the highest efficiencies and environmentally friendly results from biomass boilers. The Grant Spira has a rapid ignition system and generally does not require a buffer tank and when combined with our modulating and self cleaning burner the system can operate in similar characteristics to an oil or gas boiler. For the homeowner, the patented boiler and burner self cleaning system, along with automatic fuel delivery results in minimal intervention once installed. Woodpellets to EN Plus standards are some of the highest calonfic value available in Biomass and with a low moisture content, and when combined with the unique boiler and burner combinations excellent combustion and efficiency is achieved.
a++ HeatingFeatures & benefits
The Spira was one of the first condensing biomass boilers on the market following many years of research and development. The different models available of the Spira boiler are designed to match in a convenient and safe way any home in a cost effective manner. The boiler is commonly installed in a garage / out-house or plantroom, or in a unique Spirapod which is an outdoor housing unit specifically for the Spira. Your installer will advise on the best location for your Spira, especially if you intend to use a bulk pellet store.
Spira boilers are available in outputs of 5-18kW, 6-26kW and 9-36kW. All boilers are supplied with a side hopper which must be specified as a left or right hand unit on ordering. Also included is the pellet feed auger which supplies pellets when needed to the burner. If required for larger applications, two boilers with separate flues can be utilised, with a central twin auger hopper option up to 72kW.
This is a very cost effective method giving larger outputs with excellent efficiency. In this scenario, both burners can modulate as one and reduce to a quarter of the maximum output when not required. With the incredibly high efficiency, low flue gas temperature and easy maintenance, the Spira is a unique option when installing a wood pellet boiler.
- 5 year warranty when installed by Grant trained installer & commissioned. Subject to T&Cs
- Unique and award winning condensing boiler
- Grant pellet vacuum system up to 20m distance kits available
- Automatic pellet feed and ignition
- Automatic cleaning system for the boiler and burner
- Supplied with a side pellet store
- Self cleaning modulating burner
- Flue box has draught stabliliser, flue draught regulator and integral fan.
- Bulk pellet store up to 6 tonne & extended bulk augers available
Specification
Product code |
Model |
Energy Label |
Product Fiche |
Weight |
Height |
Width |
Depth |
Efficiency |
NOx Emissions |
Wash System - Condensing Unit |
Condensate Drain |
Water Content |
Electrical Supply |
Integrated Hopper Size |
Energy Rating |
Load Profile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WPS518LH110 | 18kW Wood Pellet Boiler c/w 110 Left Hand Single Hopper and Feed Auger | View | View | 273kg | 1535mm | 1029mm | 1029mm | 95.5 | - | - | - | - | - | - | a++ Heating | - |
| WPS518RH110 | 18kW Wood Pellet Boiler c/w 110 Right Hand Single Hopper and Feed Auger | View | View | 273kg | 1535mm | 1029mm | 1029mm | 95.5 | - | - | - | - | - | - | a++ Heating | - |
| WPS518RH200 | 18kW Wood Pellet Boiler c/w 200 Right Hand Single Hopper and Feed Auger | View | View | 308.5kg | 1535mm | 1129mm | 1129mm | 95.5 | - | - | - | - | - | - | a++ Heating | - |
| WPS518LH200 | 18kW Wood Pellet Boiler c/w 200 Left Hand Single Hopper and Feed Auger | View | View | 308.5kg | 1535mm | 1129mm | 1129mm | 95.5 | - | - | - | - | - | - | a++ Heating | - |
| WPS626RH110 | 26kW Wood Pellet Boiler c/w 110 Right Hand Single Hopper and Feed Auger | View | View | 273kg | 1535mm | 1029mm | 1029mm | 97.4 | - | - | - | - | - | - | a++ Heating | - |
| WPS626LH110 | 26kW Wood Pellet Boiler c/w 110 Left Hand Single Hopper and Feed Auger | View | View | 273kg | 1535mm | 1029mm | 1029mm | 97.4 | - | - | - | - | - | - | a++ Heating | - |
| WPS626RH200 | 26kW Wood Pellet Boiler c/w 200 Right Hand Single Hopper and Feed Auger | View | View | 273kg | 1535mm | 1029mm | 1029mm | 97.4 | - | - | - | - | - | - | a++ Heating | - |
| WPS262LH200 | 26kW Wood Pellet Boiler c/w 200 Left Hand Single Hopper and Feed Auger | View | View | 273kg | 1535mm | 1029mm | 1029mm | 97.4 | - | - | - | - | - | - | a++ Heating | - |
| WPS936RH110 | 26kW Wood Pellet Boiler c/w 110 Right Hand Single Hopper and Feed Auger | View | View | 303kg | 1535mm | 1029mm | 1029mm | 93.1 | - | - | - | - | - | - | a++ Heating | - |
| WPS936LH110 | 36kW Wood Pellet Boiler c/w 110 Left Hand Single Hopper and Feed Auger | View | View | 303kg | 1535mm | 1029mm | 1029mm | 93.1 | - | - | - | - | - | - | a++ Heating | - |
| WPS936RH200 | 36kW Wood Pellet Boiler c/w 200 Right Hand Single Hopper and Feed Auger | View | View | 338.5kg | 1535mm | 1129mm | 1129mm | 93.1 | - | - | - | - | - | - | a++ Heating | - |
| WPS936LH200 | 36kW Wood Pellet Boiler c/w 200 Left Hand Single Hopper and Feed Auger | View | View | 338.5kg | 1535mm | 1129mm | 1129mm | 93.1 | - | - | - | - | - | - | a++ Heating | - |
| WPS11/44 | 18kW &26kW Wood Pellet Boilers c/w 140 Dual Hopper and Feed Augers | View | View | 495kg | 1535mm | 1792mm | 1792mm | 95.5 | - | - | - | - | - | - | a++ Heating | - |
| WPS12/52 | 2x 26kW Wood Pellet Boilers c/w 140 Dual Hopper and Feed Augers | View | View | 505kg | 1535mm | 1792mm | 1792mm | 97.4 | - | - | - | - | - | - | a++ Heating | - |
| WPS15/62 | 26kW & 36kW Wood Pellet Boilers c/w 140 Dual Hopper and Feed Augers | View | View | 535kg | 1535mm | 1792mm | 1792mm | 93.1 | - | - | - | - | - | - | a++ Heating | - |
| WPS18/72 | 2x 36kW Wood Pellet Boilers c/w 140 Dual Hopper and Feed Augers | View | View | 565kg | 1535mm | 1792mm | 1792mm | 93.1 | - | - | - | - | - | - | a++ Heating | - |
