Grant Aerona³ R32 Air Source Heat Pump Range

a+++ Heating

5 Year guarantee^*

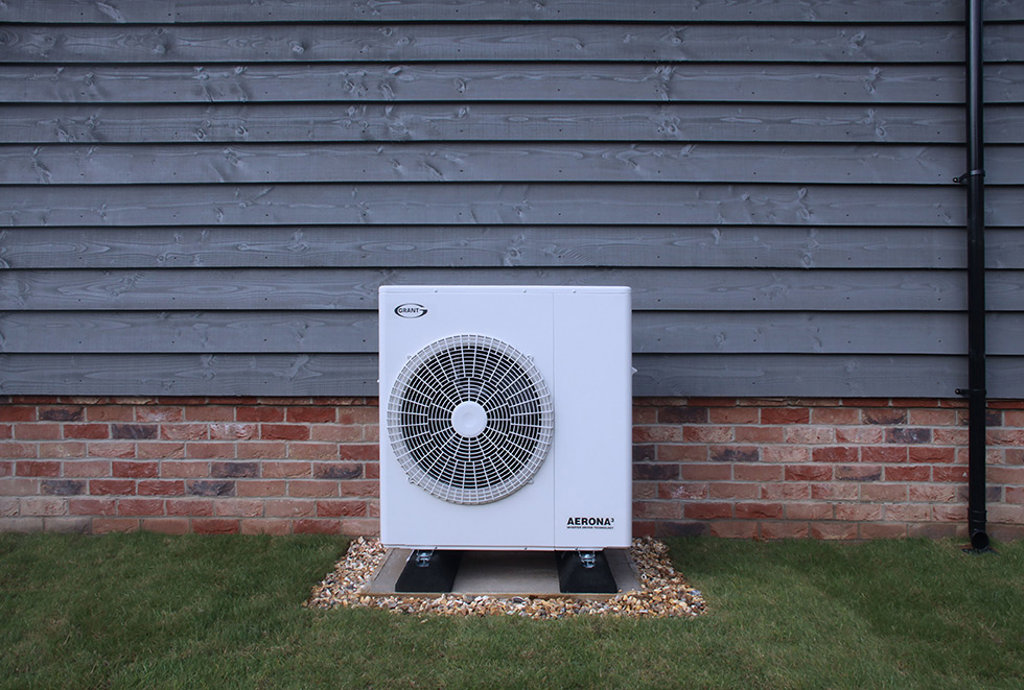

The Grant Aerona³ air to water, air source heat pump range uses R32 refrigerant and offers a highly efficient, reliable, low carbon home heating solution.

Providing excellent efficiencies and high performance, models within the Aerona³ heat pump range provide a renewable heating solution for properties and helps households lower their carbon footprint.

Product
Information

Features & Benefits

Awards & Accreditations

Specifications

Downloads

Features & benefits

Two models available in outputs of 6kW & 10kW
Both models operate at incredibly high efficiencies, even when external temperatures are low, making for a cost-effective renewable alternative to traditional off-gas heating methods
The units have a compact footprint, designed to have minimal impact on their surroundings
High SCOP across the range
Built in weather compensation
Helps achieve building compliance for new builds and renewable energy targets
Operates with external temperatures as low as -20°C
ErP rating of A+++
Single phase
Built in circulating pump
Built in circulating pump

Awards & Accreditations

Knowledgebase

What is a Heat Pump?

An air to water air source heat pump utilises heat energy captured from the air in “wet” heating systems such as radiators or underfloor heating.

What is an air to water air source heat pump?

Specification

Product code	Model	Energy Label	Product Fiche	Weight	Height	Width	Depth	SCOP 35°C	Capacity	Power Input	Running Current (Max)	Refridgerant	Operating Voltage	Flow/Return Tappings	Min/Max Operating Temperatures - Air	Sound Power Level 1M	Sound Pressure Level at neighbouring assessment position	ErP Rating
HPID6R32	Grant Aerona³ 6kW R32 Inverter Driven Air Source Heat Pump	View	View	51kg	675mm	898mm	379.4mm	4.62	6.92kW	1.41kW	11.2	-	-	-	-20/43°C	65.2dB(a)	54.2dB(a)	a+++
HPID10R32	Grant Aerona³ 10kW R32 Inverter Driven Air Source Heat Pump	View	View	70kg	882mm	874mm	405mm	5.19	11.1kW	2.10kW	17.5	-	-	-	-20/43°C	64dB(a)	53dB(a)	a+++
HPID13R32	Grant Aerona³ 13kW R32 Inverter Driven Air Source Heat Pump	View	View	99kg	1418mm	1024mm	403mm	5.41	13.6kW	2.59kW	23.0	2.20	230V	1 1/4"BSPF	-20/43°C°C	-20/43dB(a)dB(a)	49.8dB(a)	a+++
HPID17R32	Grant Aerona³ 17kW R32 Inverter Driven Air Source Heat Pump	View	View	118kg	1418mm	1024mm	403mm	4.54	13.6kW	2.59kW	25.3	-	-	-	-20/43°C	60.8dB(a)	49.8dB(a)	a+++
