Grant High Performance Cylinders

Grants high performance cylinders have been designed to heat water quicker and more efficiently than a standard cylinder, making it a perfect partner for our renewable range, in particular our Grant Aerona³ R32 air to water air source heat pump range. We offer indirect single and twin coil cylinders in both 210 litre and 300 litre sizes, while also offering a pre-plumbed cylinder for a quick and convenient installation.

Features & benefits

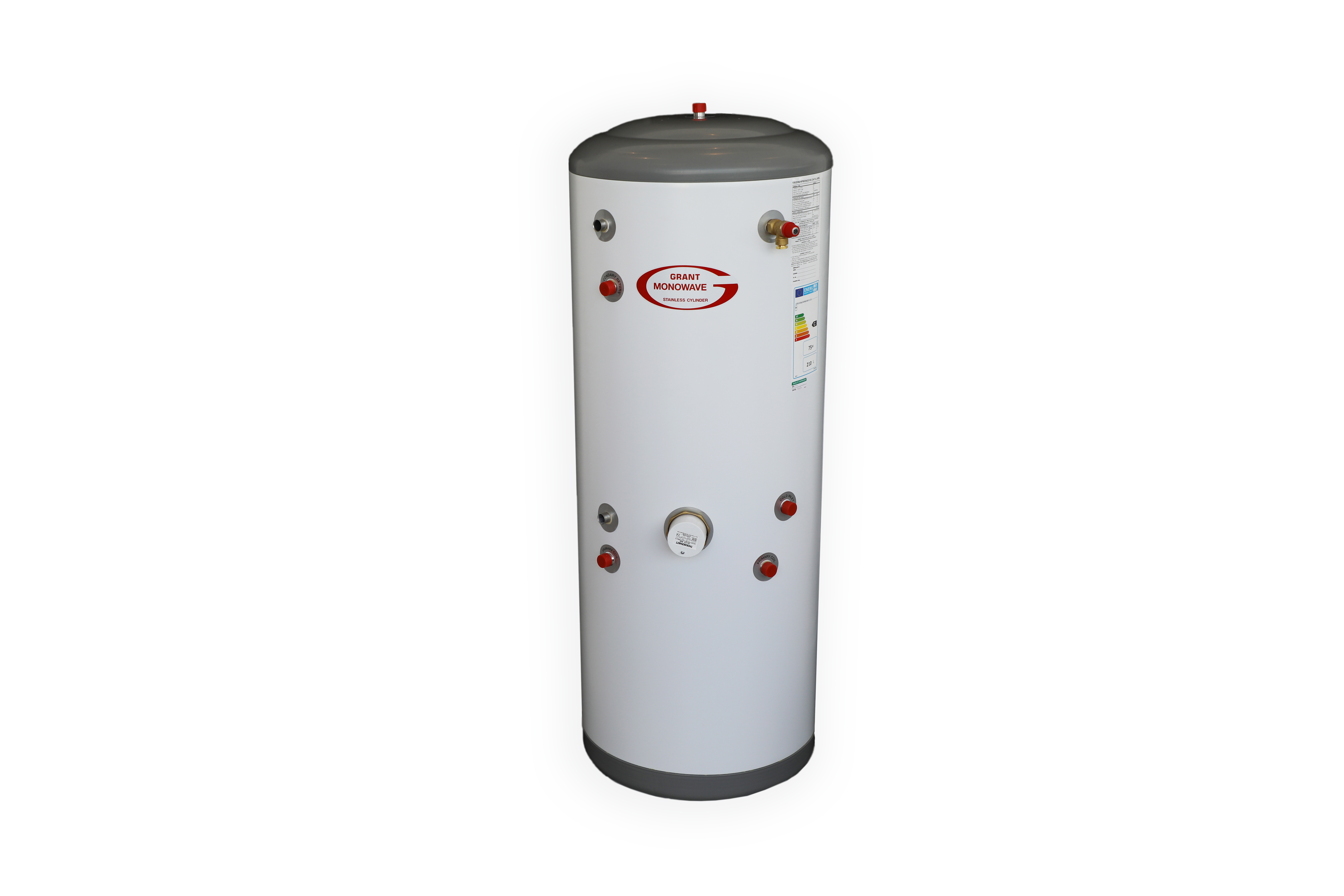

Grant has added a new cylinder to its range of heat pump cylinders. The exceptionally strong and durable A rated single coil, indirect Duplex stainless steel cylinder is 210 litres in size and is designed to maintain temperature for longer due to its higher levels of insulation, when installed alongside a Grant Aerona³ R32 air to water air source heat pump. These units are economical to run with minimal maintenance and no hidden costs, they have a high flow rate which is ideal for homes with multiple bathrooms and fast filling of baths. They contain mains pressure hot water for powerful showers.

*Other cylinder ranges available on request. Stainless steel cylinders not to be fitted on private water source, bore hole or well.

10 year guarantee on cylinder shell (subject to T&C’s)
Available from 210 – 300L
Immersion heater & fast recovery stainless steel solid coils
Suitable for use with heat pumps, biomass, gas, oil boilers and solar
Suitable for both domestic and light commercial use
Manufactured from ‘Duplex’ stainless steel for superior corrosion resistance
28mm and 22mm compression fittings
50mm CFC and HCFC-free foam lagging for low heat loss
Additional sizes may be available upon request
Cylinder kits available

Specification

Product code	Model	Energy Label	Product Fiche	Weight Empty	Weight Full	Height	Width	Depth	Pressure Regulator	Immersion	Expansion Vessel	Coil Rating Primary	Coil Rating Secondary	Coil Rating Solar	Standing Heat Loss	Energy Rating
HPMONOA/IND200	GRANT Monowave single coil indirect stainless steel 200ltr cylinder for ASHP (A Rated cylinder)	View	View	70kg	270kg	1950mm	580mm	580mm	-	-	-	-	-	-	-	a Heating
HPMONO/IND200	GRANT MonoWave single coil indirect s/s 200 litre cylinder for ASHP	View	View	49kg	249kg	1230mm	580mm	580mm	-	-	-	-	-	-	-	b Heating
HPMONO/IND300	GRANT MonoWave single coil indirect s/s 300 litre cylinder for ASHP	View	View	68kg	368kg	1745mm	580mm	580mm	-	-	-	-	-	-	-	c Heating
HPDUO/IND200	GRANT DuoWave solar twin coil indirect stainless steel 200 litre cylinder for ASHP	View	View	53kg	253kg	1230mm	580mm	580mm	-	-	-	-	-	-	-	b Heating
HPDUO/IND300	GRANT DuoWave solar twin coil indirect stainless steel 300 litre cylinder for ASHP	View	View	72kg	372kg	1745mm	580mm	580mm	-	-	-	-	-	-	-	c Heating
CYL300TRIPLE	GRANT Duowave plus open vented triple coil solar indirect stainless steel 300ltr cylinder	-	-	74kg	374kg	1745mm	580mm	580mm	-	-	-	-	-	-	-
