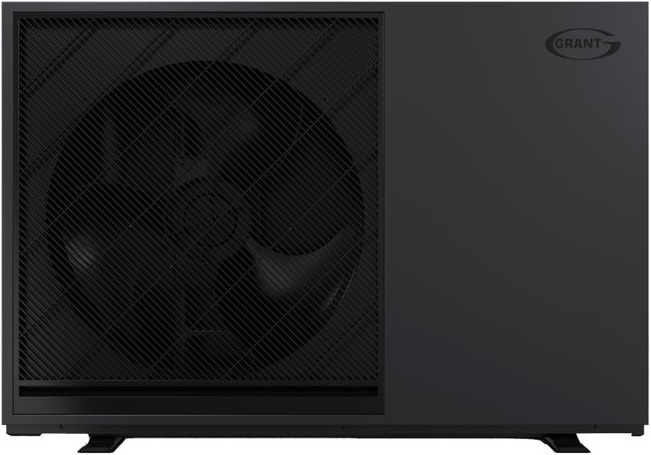

Grant Aerona R290 Air Source Heat Pump

The Aerona R290 air-to-water heat pump is Grant’s most innovative heat pump and represents a significant advancement in renewable heating technology. Engineered for superior efficiency, this innovative system utilises R290 refrigerant, a highly energy-efficient, natural refrigerant with an ultra-low Global Warming Potential (GWP), delivering a low-carbon, environmentally conscious heating solution.

The Aerona R290 features a streamlined design with a modern aesthetic, making it a practical and visually appealing choice for a range of residential applications. By leveraging the thermodynamic properties of R290, this system ensures exceptional performance while aligning with stricter environmental regulations and sustainability goals.

Specifically designed for high-efficiency space heating and domestic hot water production, the Aerona R290 integrates advanced controls, including the Aerona Smart Controller, enabling seamless remote monitoring and management. This heat pump is an ideal solution for professionals seeking to deliver sustainable, cutting-edge heating systems to meet the demands of eco-conscious homeowners.

a+++ Heating

Features & benefits

Single phase heating outputs including 4kW, 6.5kW and 9kW, each rated at -5°C air temperature and 55°C water flow temperature
Featuring sound-reducing features, such as acoustic cotton sound insulation in the casing and twin eccentric cam levers with balancing weights, each heat pump operates with ultra-low sound levels and is Quiet Mark accredited
Designed for installation with the Aerona Smart Controller, the Aerona R290 can be remotely managed and monitored to assist heat pump installers with off-site diagnostic support as well as facilitating weather and load compensation, heating curve adjustments and set-up support
Features built-in PWM circulating pump, DC twin rotary compressor, low- and high-pressure protection controls, discharge temperature protection controls and factory-fitted automatic air vent and 3-bar pressure relieve valve
Uses electronic expansion valve to precisely control the flow of R290 refrigerant into the evaporator as well as a 4-way valve to divert the refrigerant flow for the defrost operation
Incorporates R290 refrigerant safety features including a refrigerant leak sensor and independent ventilation channels allowing for fresh air intake
Units have an anti-freeze protection heater on the plate heat exchanger and heated base tray. Mechanical anti-freeze valves can be used to protect the external system pipework, as glycol antifreeze cannot be used
Multiple condensate drain holes in the base tray and overflow holes facilitate the clear removal of condensate from the heat pumps

Updated R290 Heat Pump Training

The onsite Grant Training Academy and online eLearning Academy offers comprehensive heat pump training courses, designed to equip heating professionals with the technical expertise and qualifications needed to excel in the field. This course covers all aspects of the Grant Aerona R290 heat pump range and the Grant Aerona Smart Controller, and provides installers with in-depth knowledge of the design, operation, installation, commissioning, and maintenance of these heat pumps that utilise the R290 refrigerant.

The Aerona R290 ASHP Installer Course also includes critical training on safe handling practices for R290 refrigerant and detailed guidance on meeting required building compliance. For additional information on course content and upcoming training dates, click here.

Specification

Product code	Model	Energy Label	Product Fiche	Weight	Height	Width	Depth	SCOP 35°C	Capacity	Power Input	Running Current (Max)	Refridgerant	Operating Voltage	Flow/Return Tappings	Min/Max Operating Temperatures - Air	Sound Power Level 1M	Sound Pressure Level at neighbouring assessment position	ErP Rating
HPR290i40	Grant Aerona 4kW R290 Inverter Driven Air Source Heat Pump	View	View	101/116kg	803mm	1155mm	422mm	4.81	4.1kW	0.82kW	-	R290 0.59	-	-	-25/43°C	48dB(a)	-	a+++
HPR290i65	Grant Aerona 6.5kW R290 Inverter Driven Air Source Heat Pump	View	View	117/137kg	854mm	1223mm	461mm	5.02	7.6kW	1.54kW	-	R290 0.81	-	-	-25/43°C	52dB(a)	-	a+++
HPR290i90	Grant Aerona 9kW R290 Inverter Driven Air Source Heat Pump	View	View	132/149kg	854mm	1223mm	461mm	4.60	9.38kW	1.9kW	-	R290 0.96	-	-	-25/43°C	54dB(a)	-	a+++
HPR290i120	Grant Aerona 12kW R290 Inverter Driven Air Source Heat Pump	View	View	155/182kg	1365mm	1155mm	419mm	4.77	12.2kW	2.53kW	-	R290 1.2	-	-	-25/43°C	52dB(a)	-	a+++
HPR290i160	Grant Aerona 16kW R290 Inverter Driven Air Source Heat Pump	View	View	182/210kg	1365mm	1155mm	419mm	4.59	16.16kW	3.43kW	-	R290 1.65	-	-	-25/43°C	53dB(a)	-	a+++
